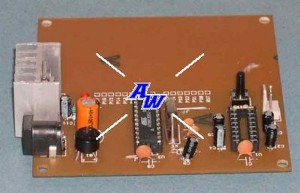

AT89C2051 PROTO BOARD

This single sided proto board provides an economical solution for developing and testing the projects around Atmel 20 pin series u-controllers (89Cx051 & AVR) Figure 1 shows the circuit diagram of proto board. All port connections are available for user interface around the proto area including the power supply pins. MAX232 serial driver is used
